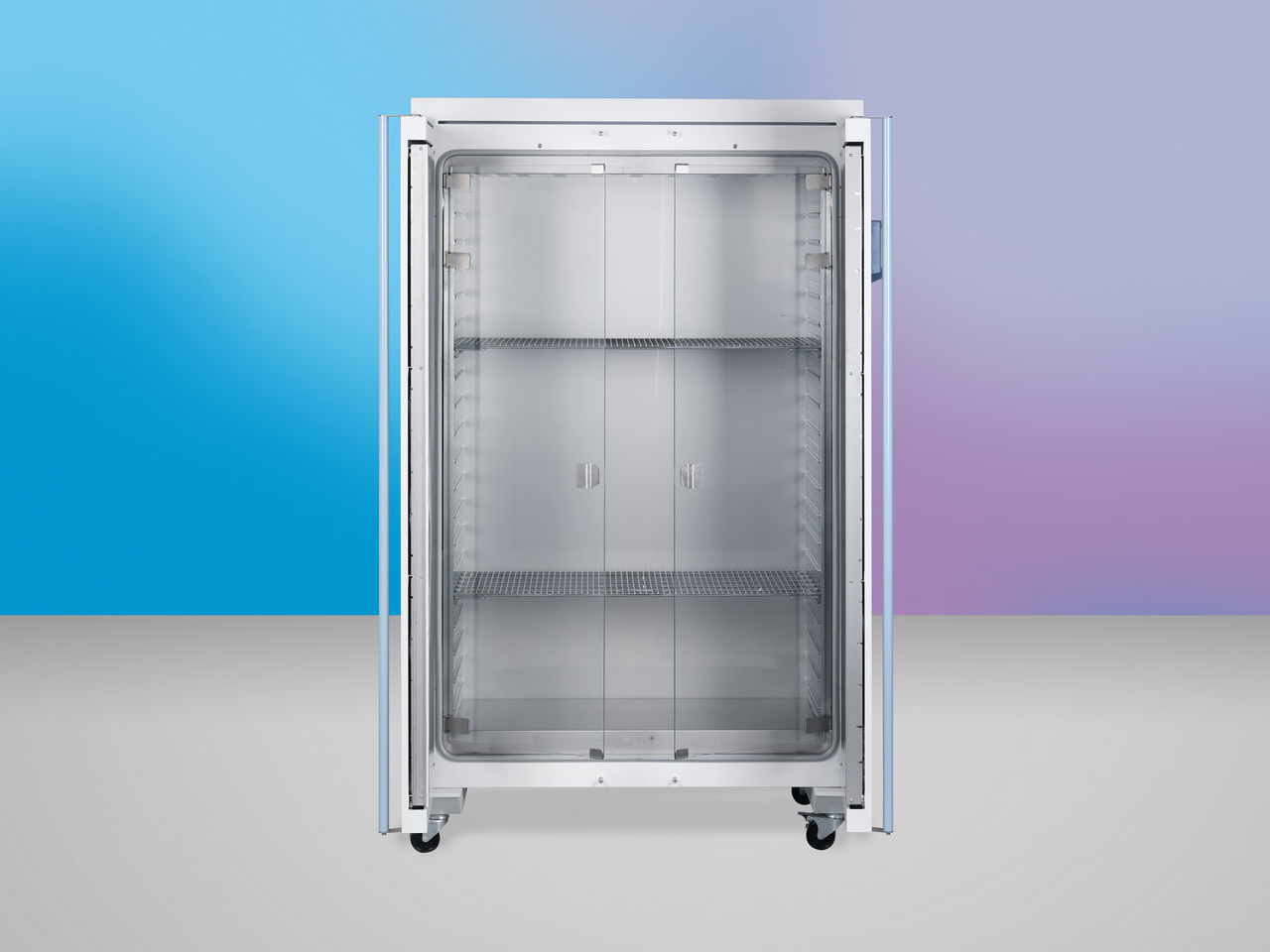

MMM INCUCELL V 707 - ECO line
- Natural, precise – laboratory incubator
- 707-liter chamber volume
- Working temperature of from +10°C above ambient up to 100°C
- Patented system of air flow in the chamber ensures quicker and more accurate distribution of the preset temperature in the chamber, which enables ideal heating of the samples
- High operation comfort, precise temperature regulation and short times of temperature recovery in the chamber after the door opening; the standard equipment includes inner glass door
- Model with a fan ensures quicker and more accurate distribution of temperature with small deviations; suitable for demanding and accurate tests and samples cultivation
- Model with a Fuzzy logic microprocessor control system; control elements situated on a foil keyboard, process information indicated on a LED display
- Wide range of optional equipment and accessories
- Output for a printer or PC connection
- Validation possibility (IQ , OQ)
Technical data
Interior of stainless steel material No. 1.4301
- volume707 l
- depth520 mm
- width940 mm
- height1410 mm
Tray
- standard equipment2 pcs
- storage area (w × d)920×485 mm
- racks19 max. number
- distance between guide rails70 mm
Maximal weight of the load *)
- inside the oven130 kg/oven
- per tray50 kg/tray
Door
- 2 pcs
External dimensions (including door and handle)
- depth790 mm
- diameter of the air branch outer/inner52/49 mm
- width1160 mm
- height, incl. Feet (N) and Rolls (K)1910 (K)
Package dimensions (three layers carton)
- depth860 mm
- width1230 mm
- depth2085 mm
Weight
- brut240 kg
- nett215 kg
Working temperature (beginning of the regulation)
- from 10 °C above ambient temp. to:100 °C
Temperature accuracy according to DIN 12 880 T2 at working temperature with closed air flap and door
- time variation cca (±)<=0,2 °C
- space deviation cca (±)<=1,5 °C
Time required to reach 37 °C with closed air flap and voltage 230 V
- 51 min
Heat emission at 37 °C
- 135 W
Air exchange speed at 37 °C
- 12 per hour
Electricity - mains 50/60 Hz
- max. power1,3 kW
- nominal voltage230 V
- current5,6 A
- power by stand by5 W
Note: All technical data are related to 22 °C of ambient temperature and ±10 % voltage swing rate ventilator 100 %, defrost off, lighting off.
