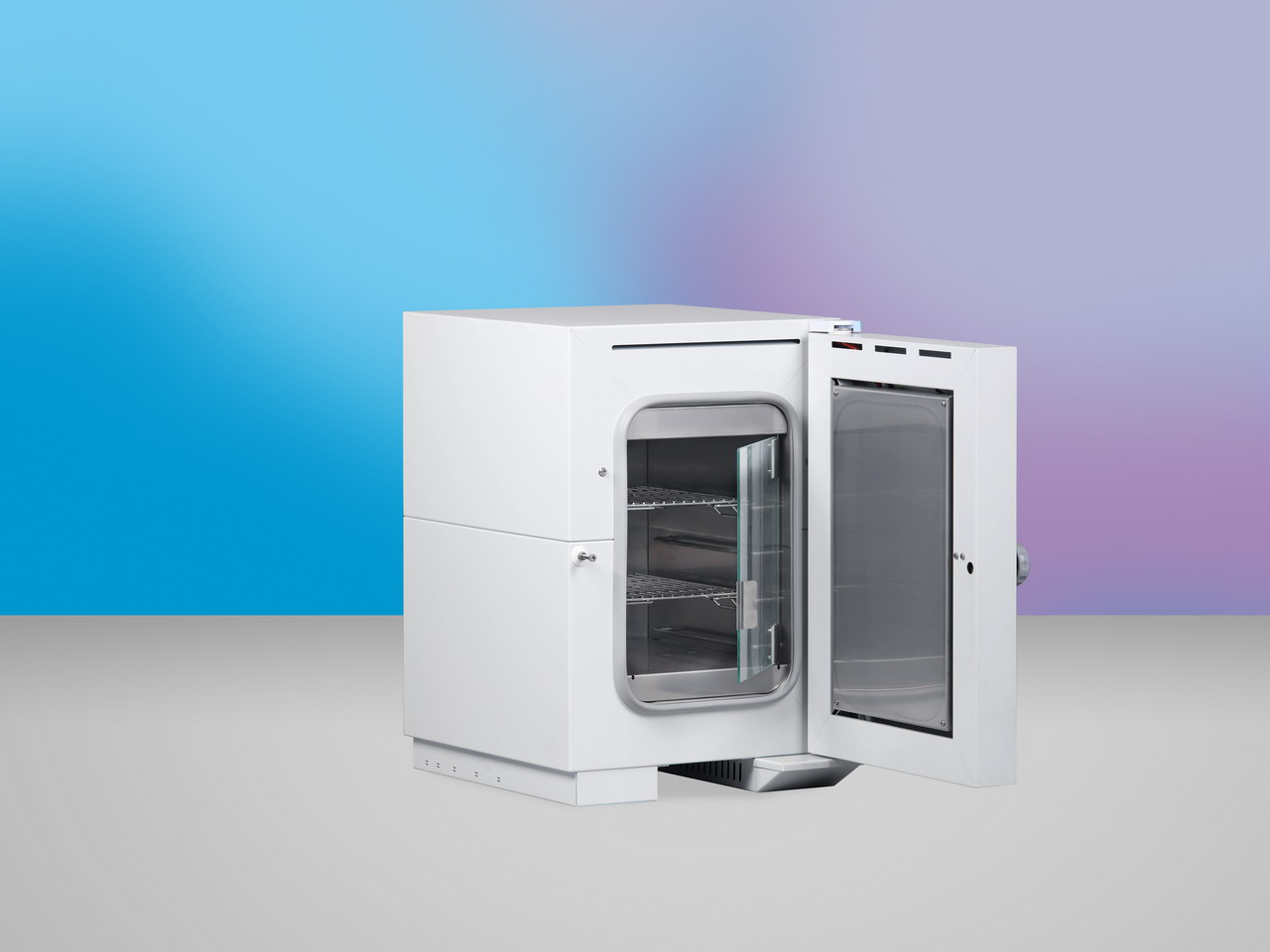

MMM INCUCELL 22 - ECO line
Suitable for safe treatment of microbiological cultures. The INCUCELL line produces no noise and provides a very soft air flow within the chamber. These devices can be used especially in biological and microbiological laboratories, quality tests in pharmaceutical and cosmetic industry, and for testing in veterinary medicine and food industry.
- Internal volume: 22, 55, 111, 222, 404, and 707 liters
- Working temperature range: from 5°C above ambient temperature up to 100°C
- Inner glass door
- Inner chamber: Stainless steel DIN 1.4301 (AISI 304)
- Natural, precise – laboratory incubator
- 22-liter chamber volume
- Working temperature of from +5°C above ambient up to 100°C
- Noiseless operation and fine air flow in the chamber
- High operation comfort, precise temperature regulation and short times of temperature recovery in the chamber after the door opening
- High-quality and safe drying, heating and tempering of common laboratory materials in laboratories and industry; suitable for safe processing of microbiological cultures
- Model with a Fuzzy logic microprocessor control system; control elements situated on a foil keyboard, process information indicated on a LED display
- Wide range of optional equipment and accessories
- Output for a printer or PC connection
- Validation possibility (IQ , OQ)
Technical data
Interior of stainless steel material No. 1.4301
- volume22 l
- depth350 mm
- width240 mm
- height300 mm
Tray
- standard equipment2 pcs
- storage area (w × d)185×265 mm
- racks4 max. number
- distance between guide rails60 mm
Maximal weight of the load*)
- inside the oven25 kg/oven
- per tray10 kg/tray
Door
- 1 pcs
External dimensions (including door and handle)
- depth560 mm
- diameter of the air branch outer / inner52/49 mm
- width406 mm
- height, incl. Feet (N) and Rolls (K)610 (N)
Package dimensions (three layers carton)
- depth720 mm
- width500 mm
- depth810 mm
Weight
- brut36 kg
- nett31 kg
Working temperature (beginning of the regulation)
- from 5 °C above ambient temp. to:100 °C
Temperature accuracy according to DIN 12 880 T2 at working temperature with closed air flap and door
- time variation cca (±)0,4 °C
- space deviation cca (±)1,1 °C
Time required to reach 37 °C with closed air flap and voltage 230 V
- 70 min
Heat emission at 37 °C
- 20 W
Air exchange speed at 37 °C
- 4 per hour
Electricity - mains 50/60 Hz
- max. power0,24 kW
- nominal voltage230 V
- current1,1 A
- power by stand by5 W
*) Approx. 50 % of the tray area can be filled in a way a uniform air circulation is enabled inside the chamber. Note: All technical data are related to 22 °C ambient temperature and +-10 % voltage swing (if not specified).
