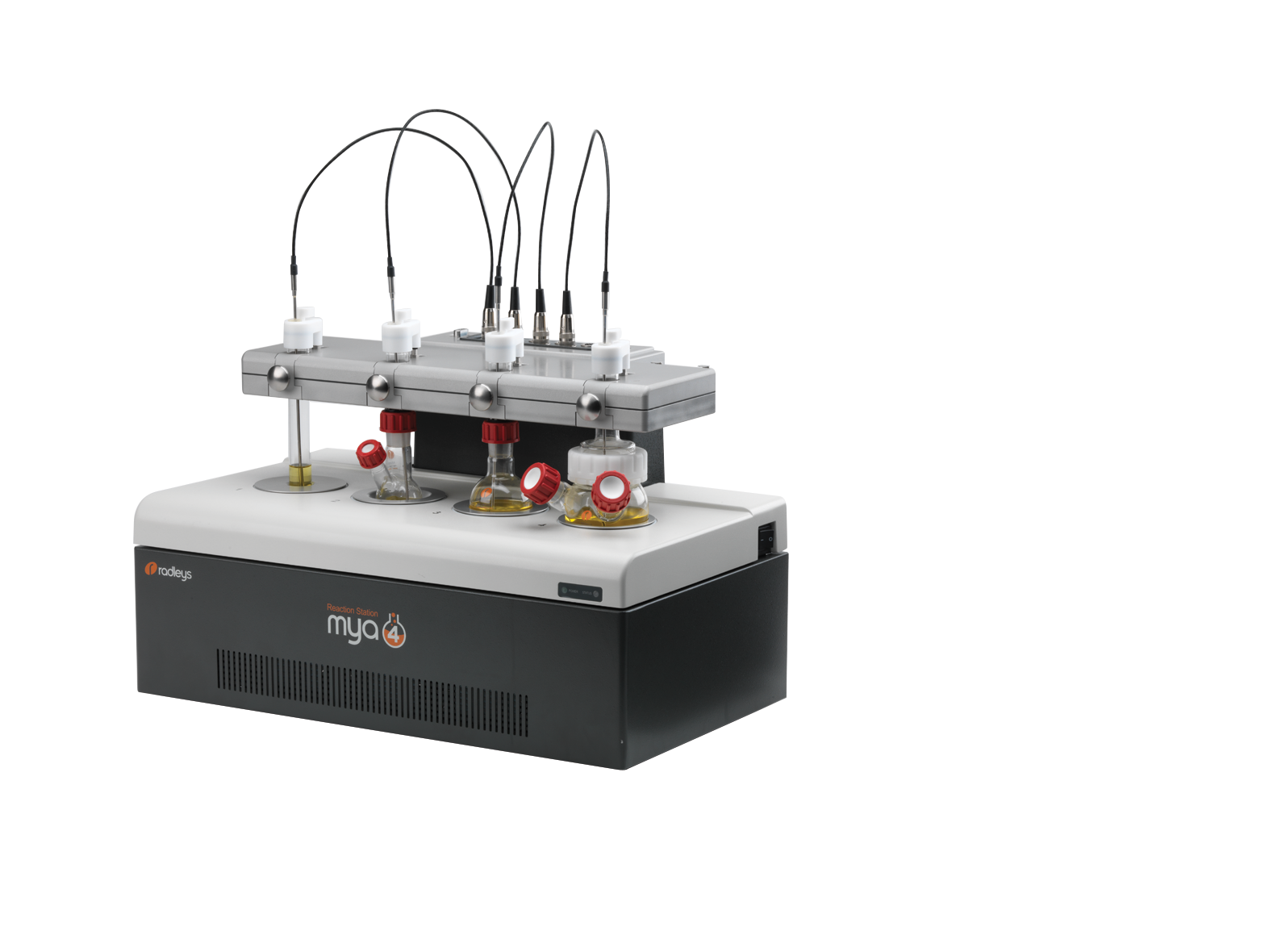

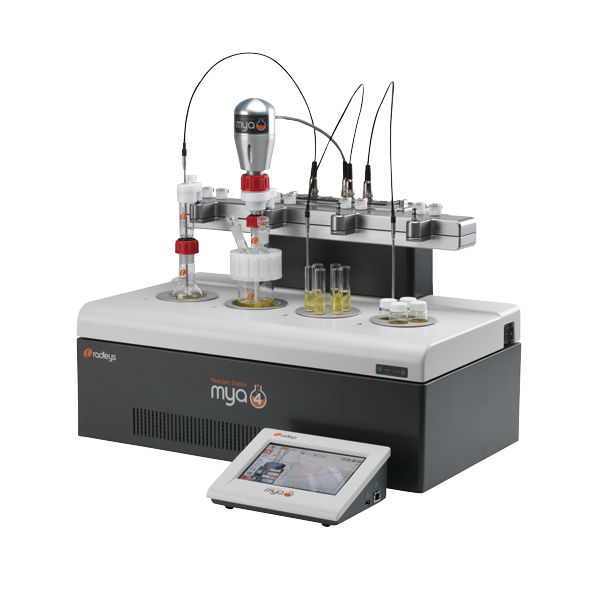

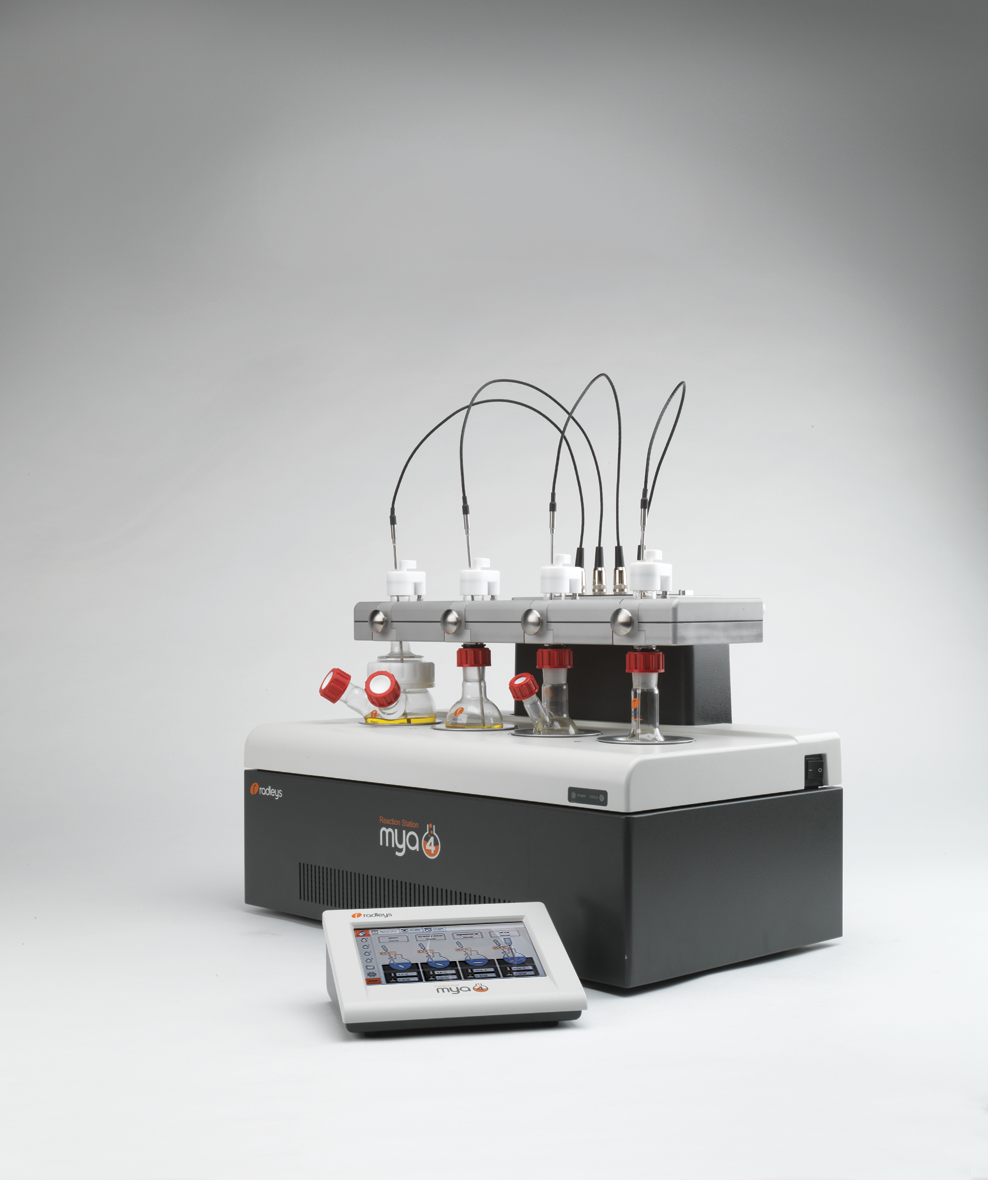

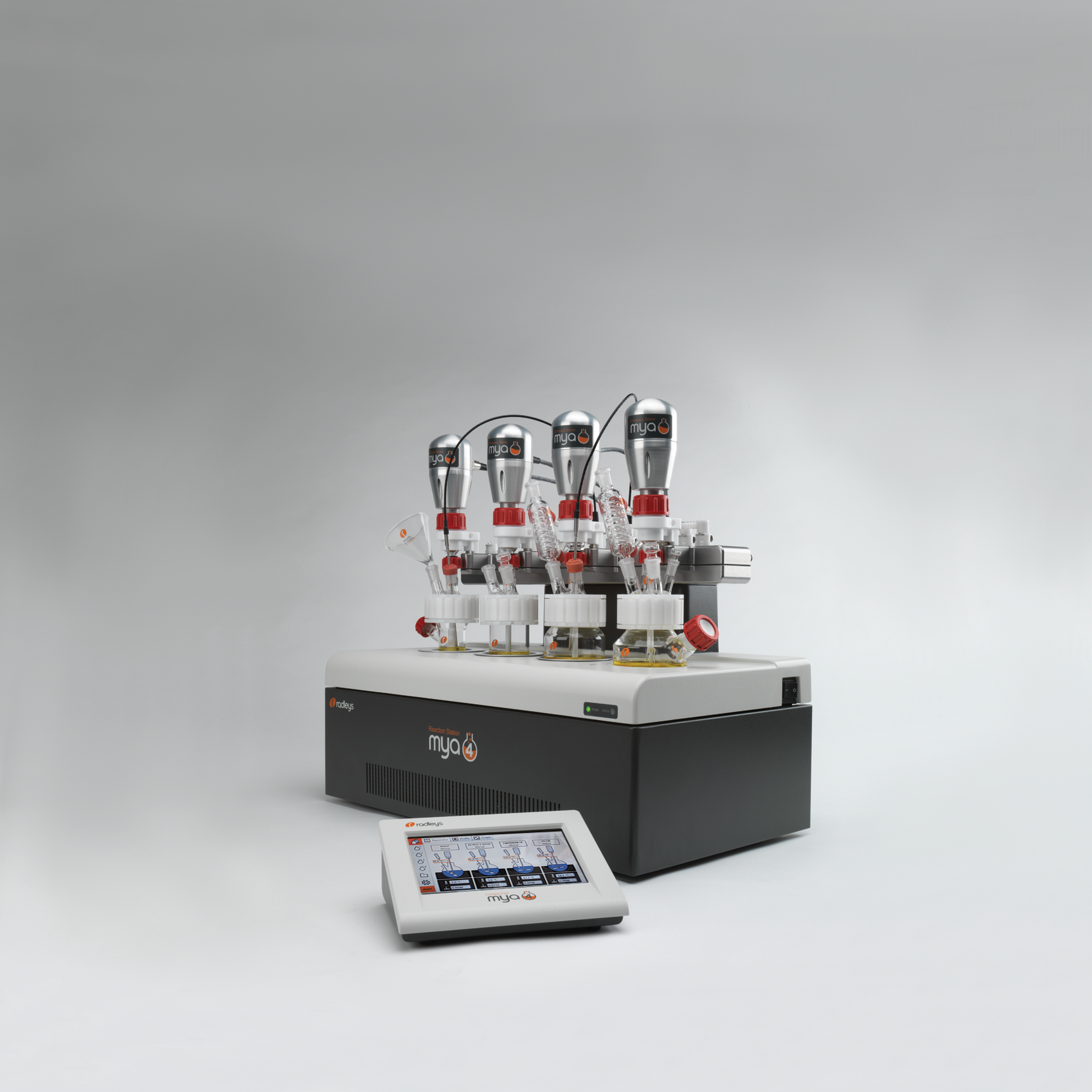

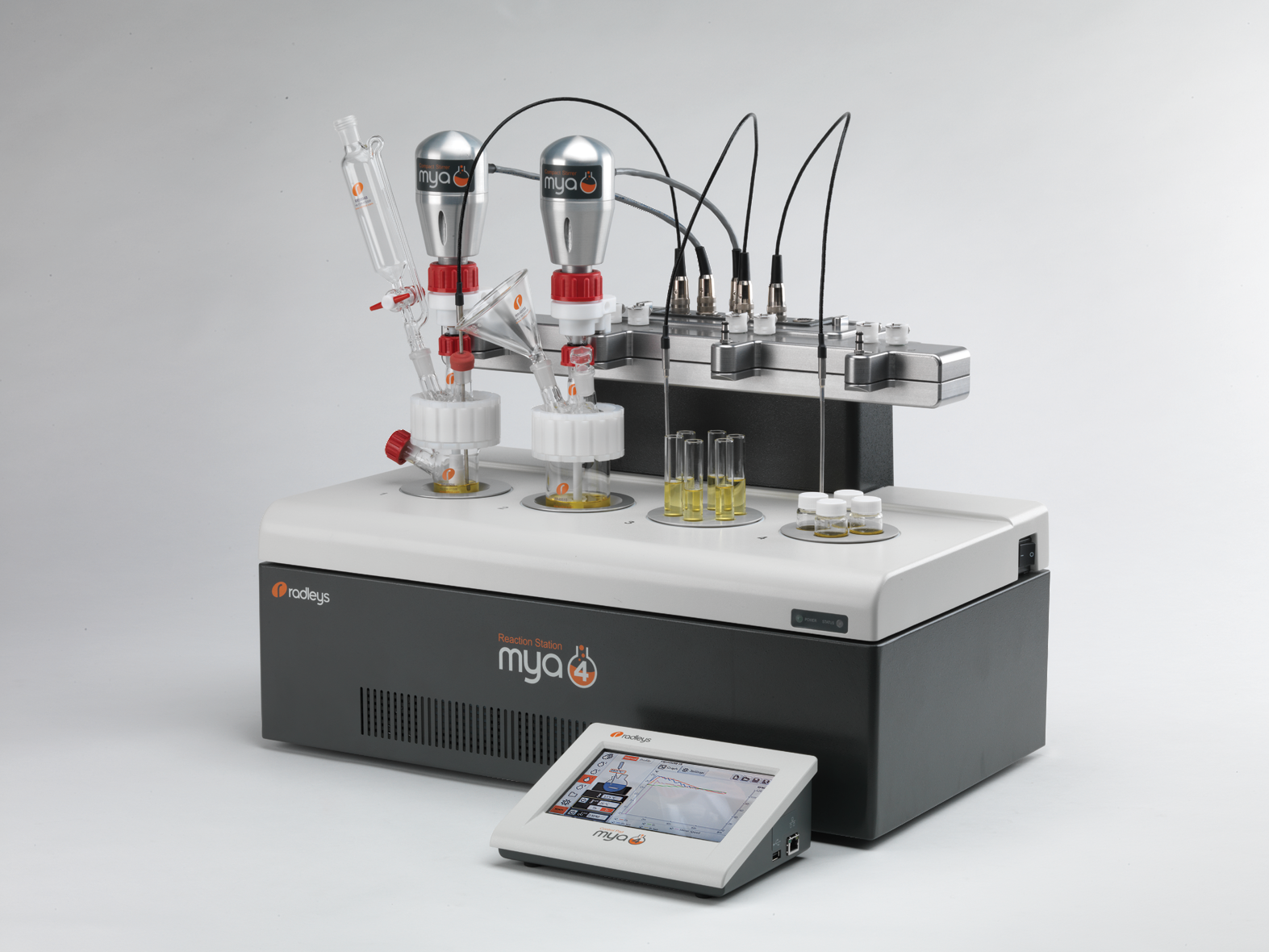

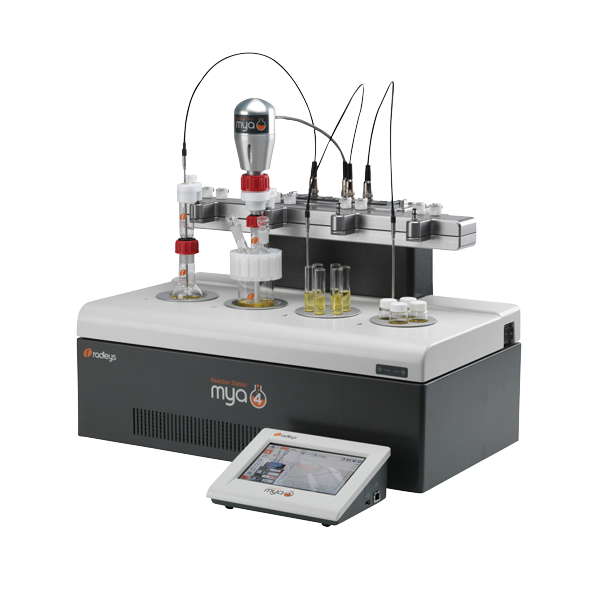

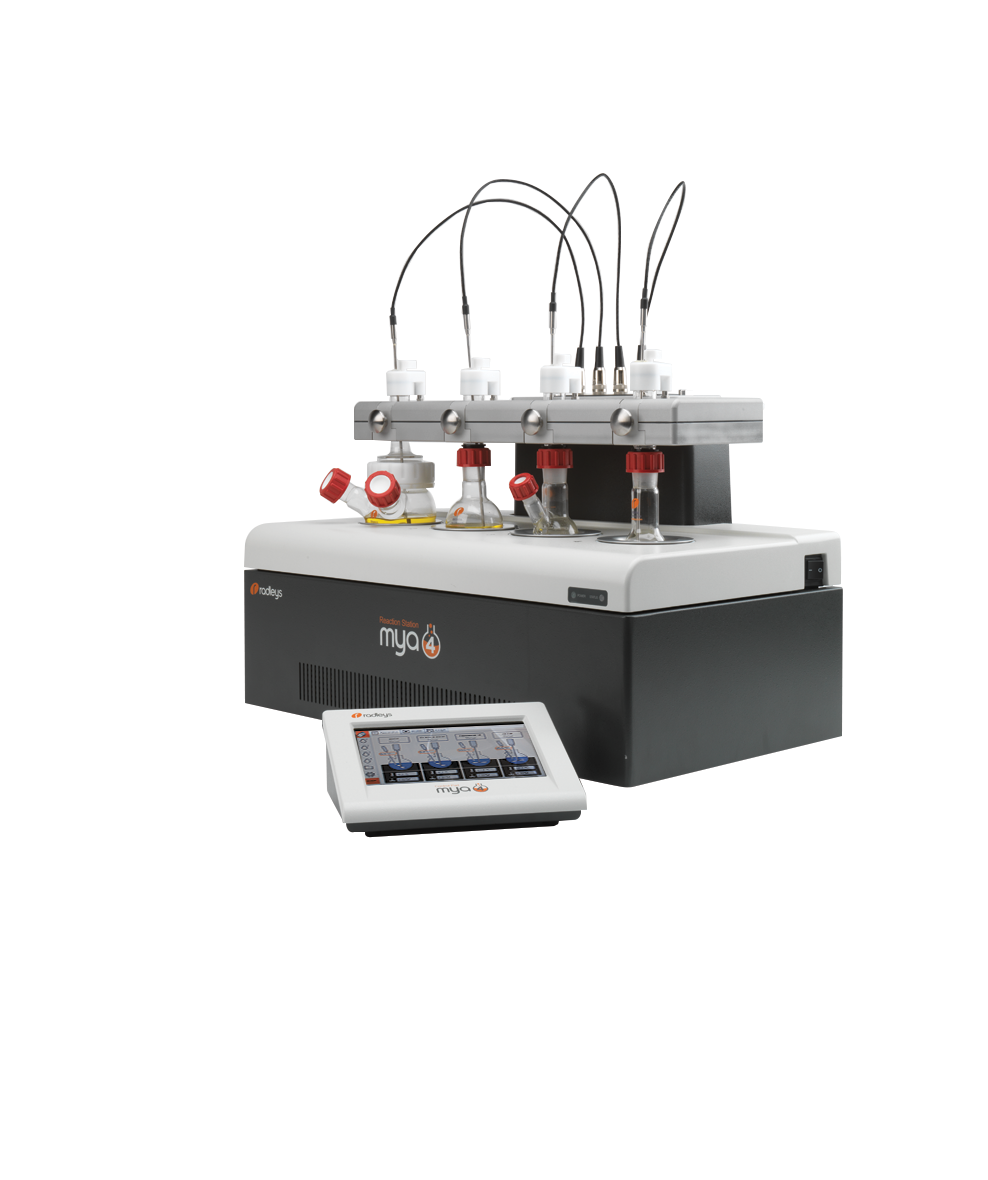

One Reaction Station, with limitless possibilities
4 independent zones
Magnetic and overhead stirring
-30 °C to +180 °C
2 ml to 400 ml
Software control

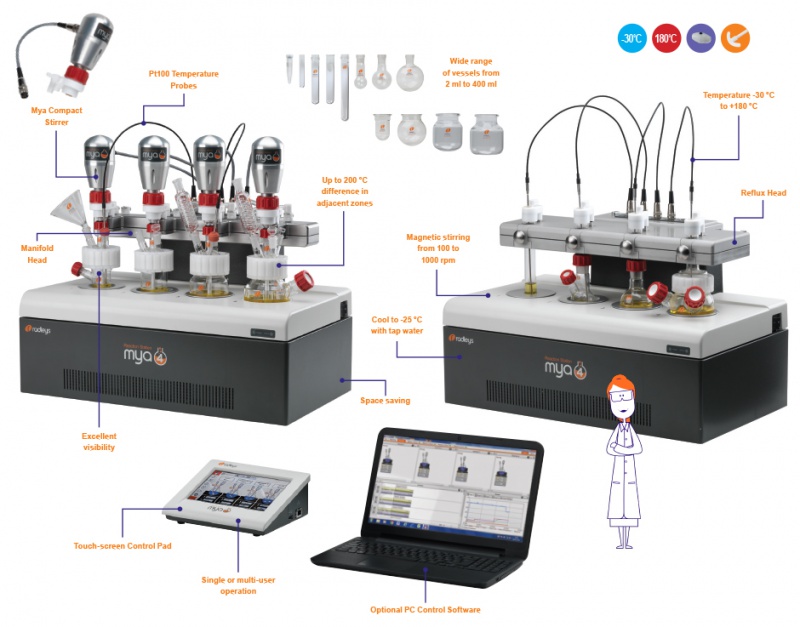

Flexible and versatile

• 4 different zones, each with heating and active cooling
• Use one compact system for a range of experiments
• Accepts a wide range of vessel sizes and styles
• Control your experiments and log results automatically

Safer, cleaner, greener and more productive

• Replace inefficient, messy and unsafe oil and ice baths
• Save space compared with separate reaction set-ups
• Software control improves safety, reduces manual errors, and allows 24/7 unattended chemistry, for improved productivity
• Create, repeat and share experiments and results with ease and accuracy
• Easily manage complex multi-step and multi-device experiments
• Integrate 3rd party devices such as pumps, balances and pH sensors etc.

Mya 4 Control Options

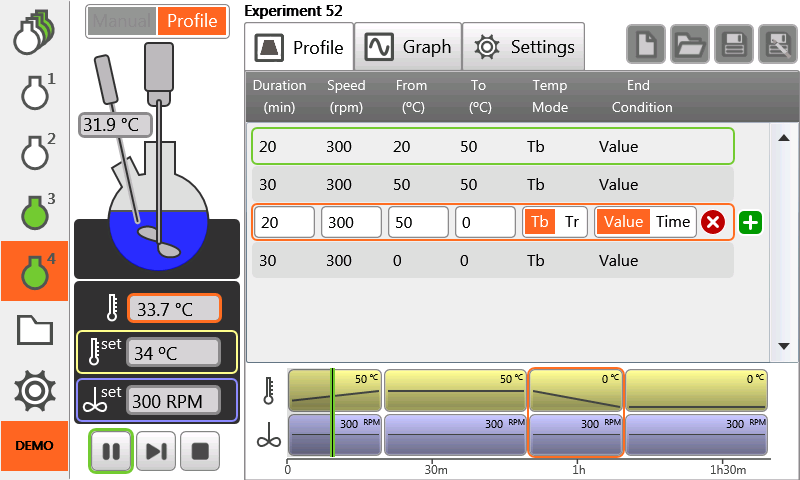

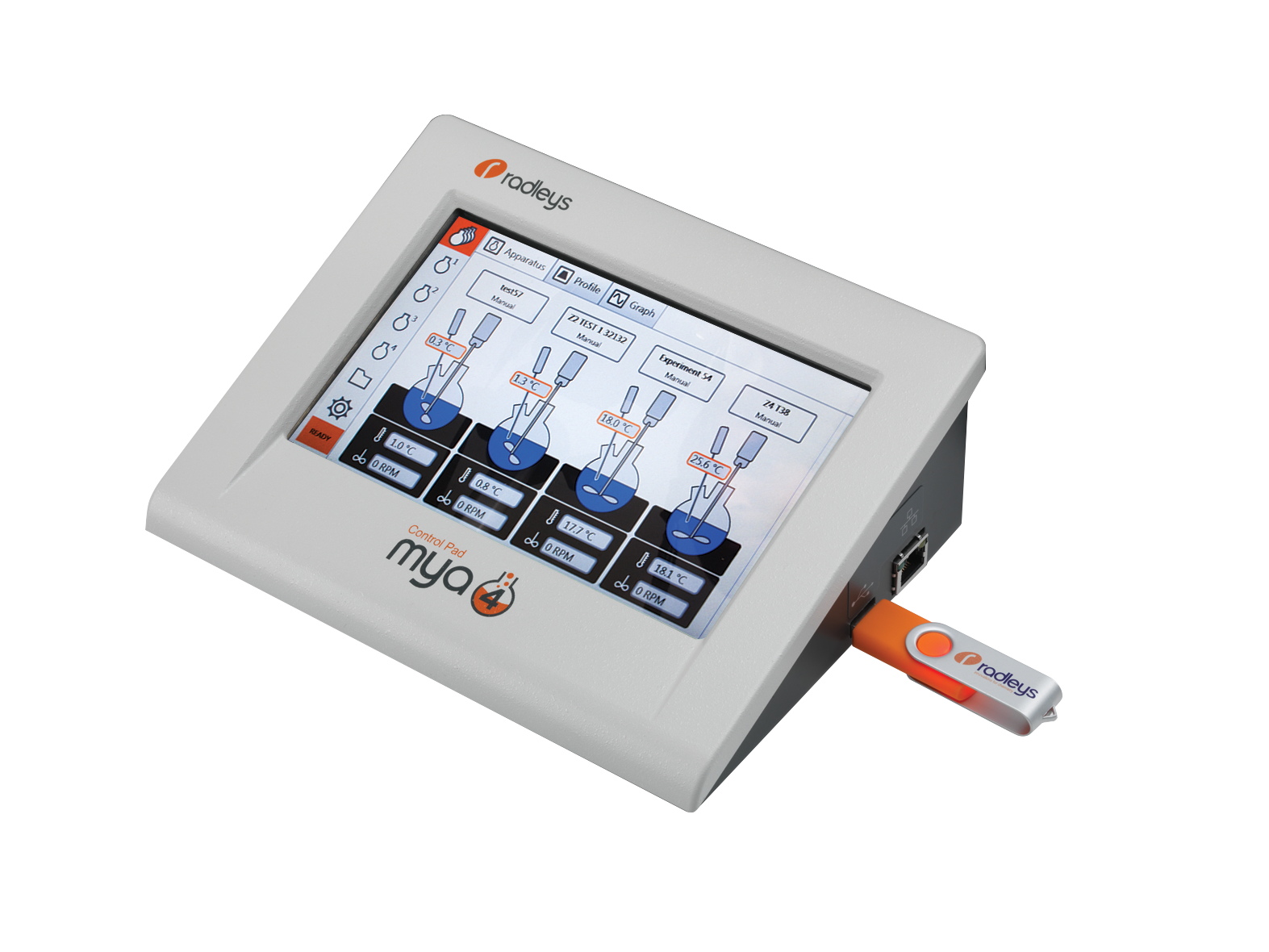

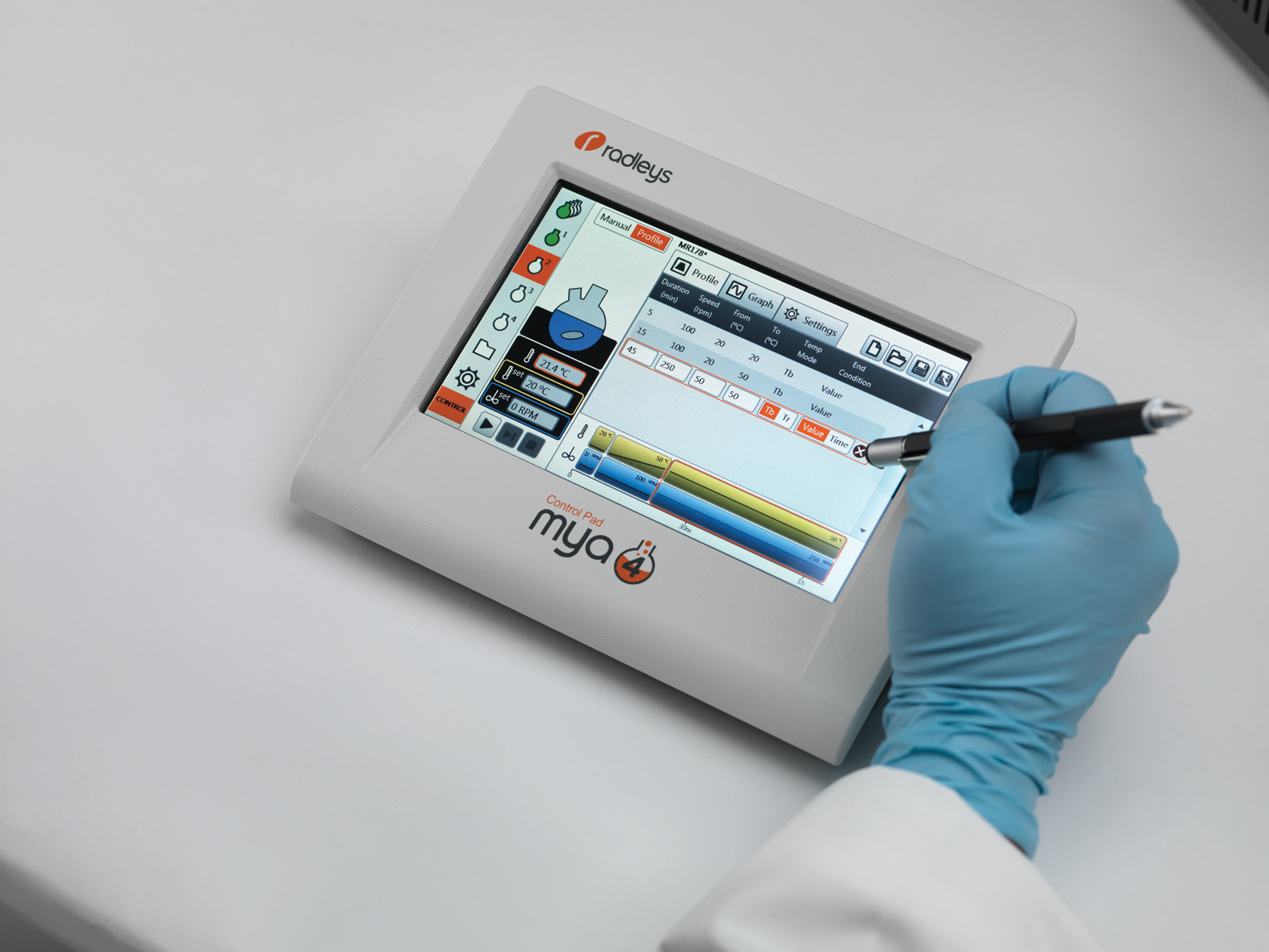

• Touch-screen Control Pad - supplied as standard

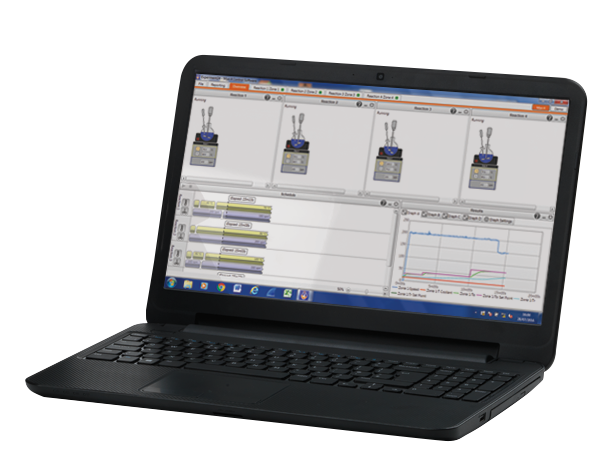

• Optional PC Control Software - to integrate and control 3rd party devices

Magnetic or optional overhead stirring

• Integrated magnetic stirring - from 100 to 1000 rpm

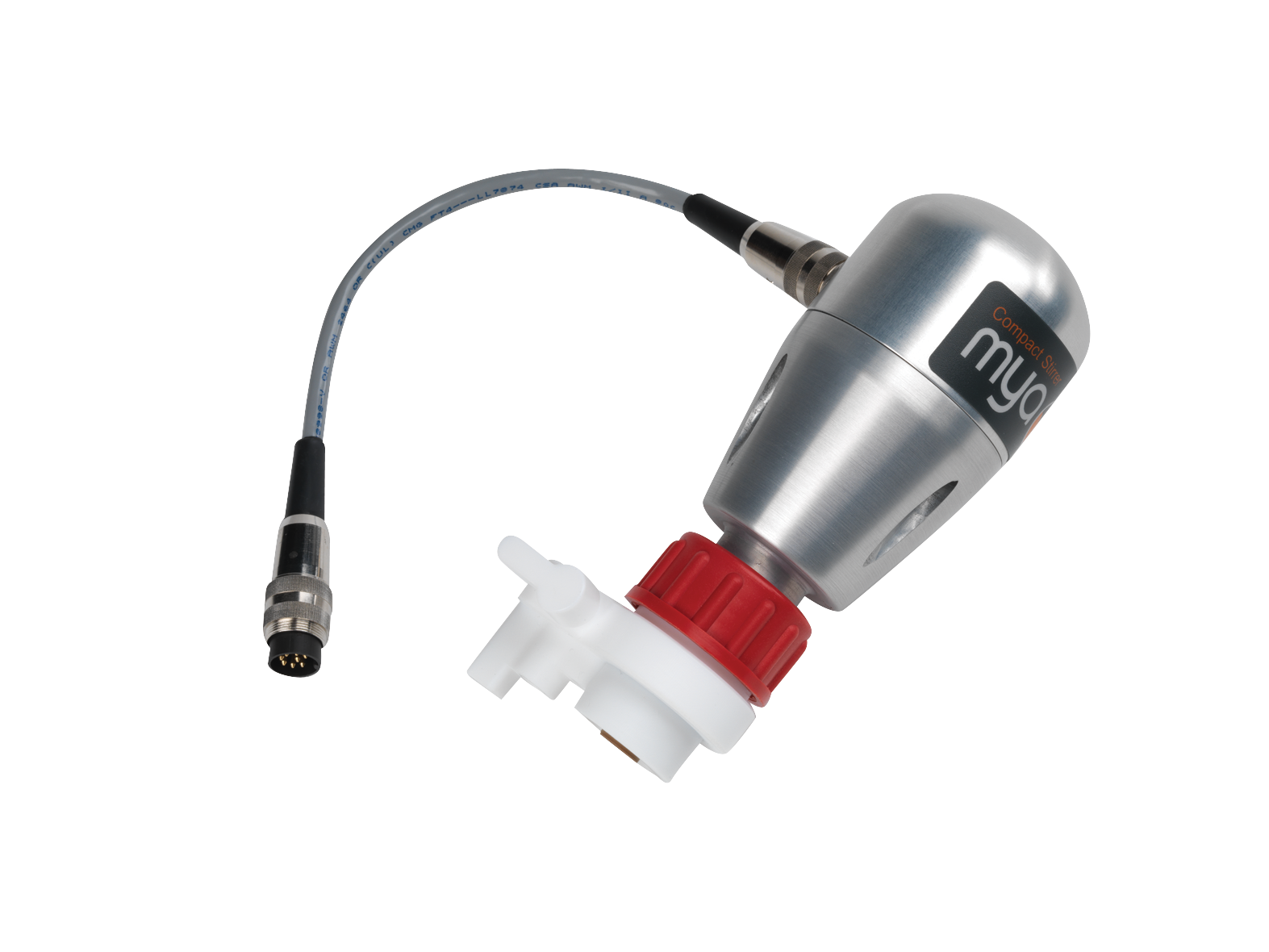

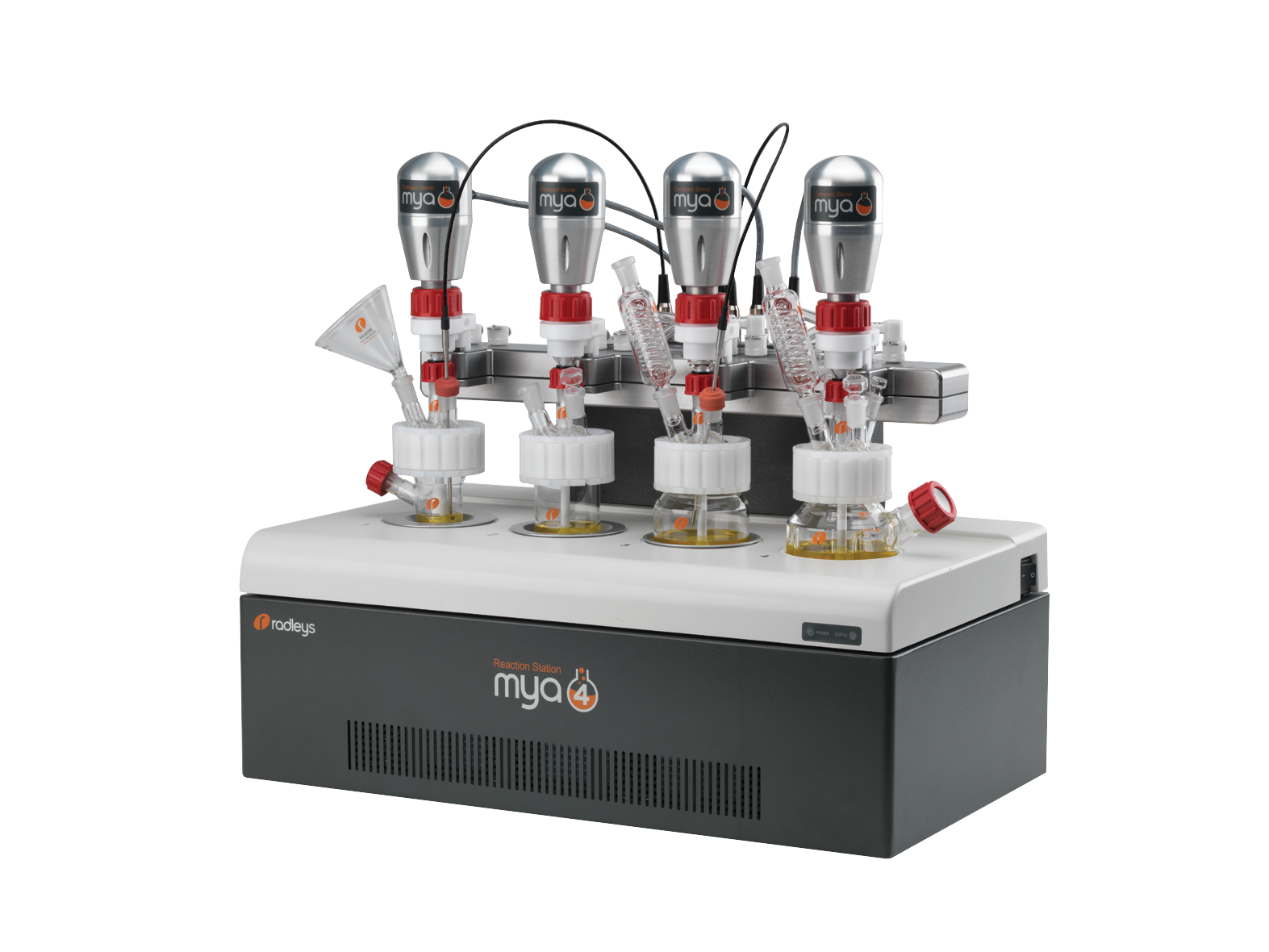

• Optional overhead stirring - from 100 to 1000 rpm


Wide selection of vessel styles and volumes

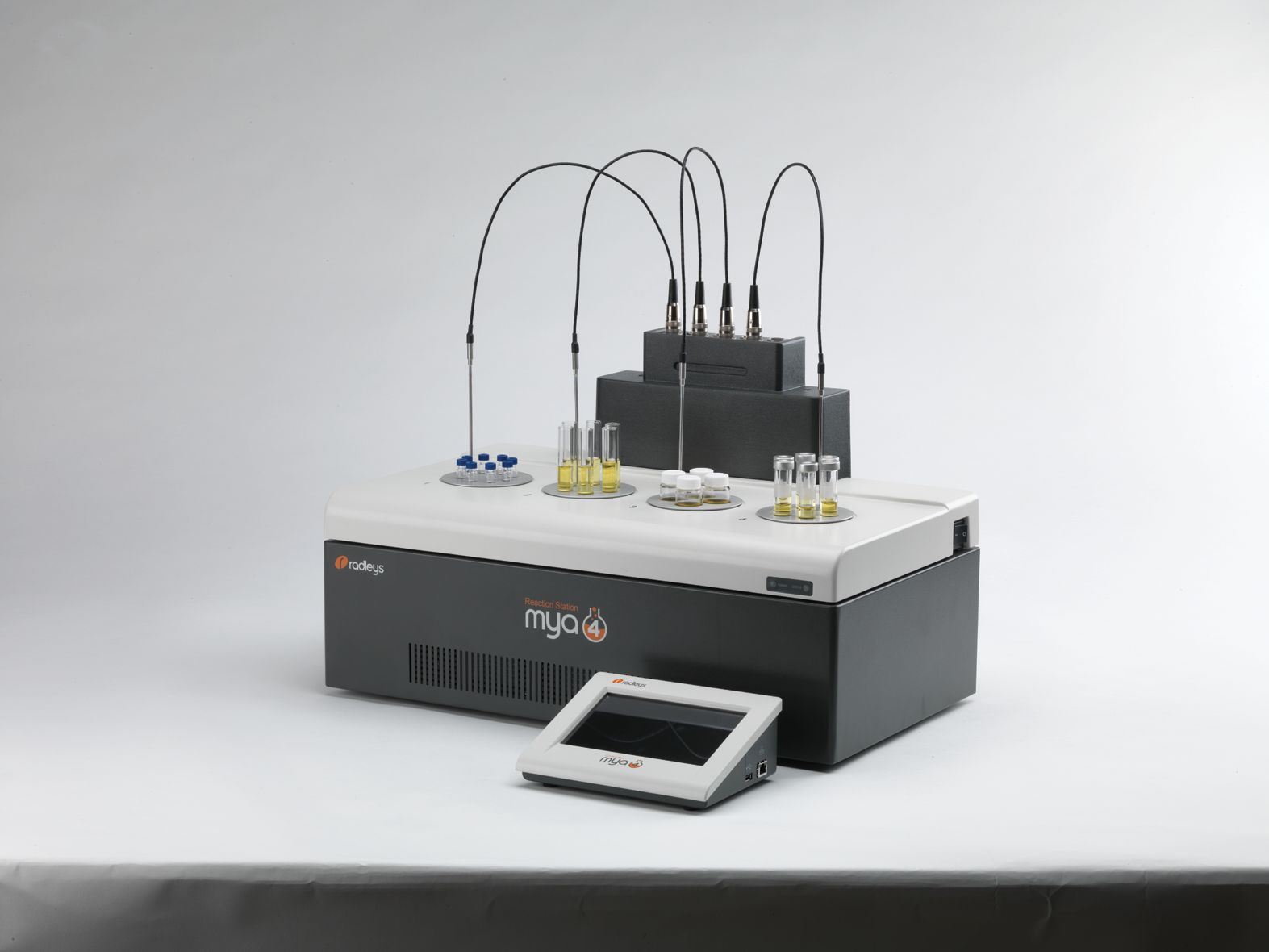

• Vials and tubes from 2 ml to 50 ml
• Round bottom flasks from the Carousel 6 Plus range
• Process reaction vessels
• Multi-neck glass lids - 3 or 5-neck
• Accessory Glassware

4 independently controlled reaction zones

• Use 1, 2, 3 or 4 zones
• Operate zones in parallel or individually by multiple users
• Removable anodised aluminium inserts for different size vessels

Precise temperature control

• Temperature range from -30 °C to +180 °C
• Up to 200 °C difference between adjacent positions
• Control the temperature of each zone independently
• Choose to control by block or solution temperature
• Pt100 temperature probes available in stainless steel or PTFE coated

Use Mya 4 with or without a chiller

• Mya 4 uses powerful Peltier technology to provide rapid cooling to -30 ˚C.
• Peltier cells require tap or chilled water to dissipate heat.

Magnetic or optional overhead stirring

• Integrated magnetic stirring - from 100 to 1000 rpm
• Optional overhead stirring - from 100 to 1000 rpm
• Control the stirring speed of each position independently
• Use magnetic or overhead stirring in adjacent zones

Wide selection of vessel styles and volumes

Vials and tubes from 2 ml to 50 ml:

• 12 mm, 16 mm, 17 mm, 17 mm tapered, 24 mm, 1 inch and 28 mm diameters
• Radleys Carousel 12 Plus reaction tubes

Round bottom flasks from the Carousel 6 Plus range:

• 25 ml, 50 ml, 100 ml and 250 ml
• One or two side arm options
• Standard and wide neck options
• Baffled vessel options

Process reaction vessels:

• With straight sides and dished base to mimic jacketed reactors
• 50 ml, 100 ml, 150 ml, 250 ml and 400 ml
• Side arm option
• Baffled vessel options

Multi-neck glass lids - 3 or 5-neck

• For wide neck round bottom flasks and process vessels

Accessory Glassware

• Condensers, dropping funnels, solid addition funnels, stoppers etc.
